Specification of Solar Simulation

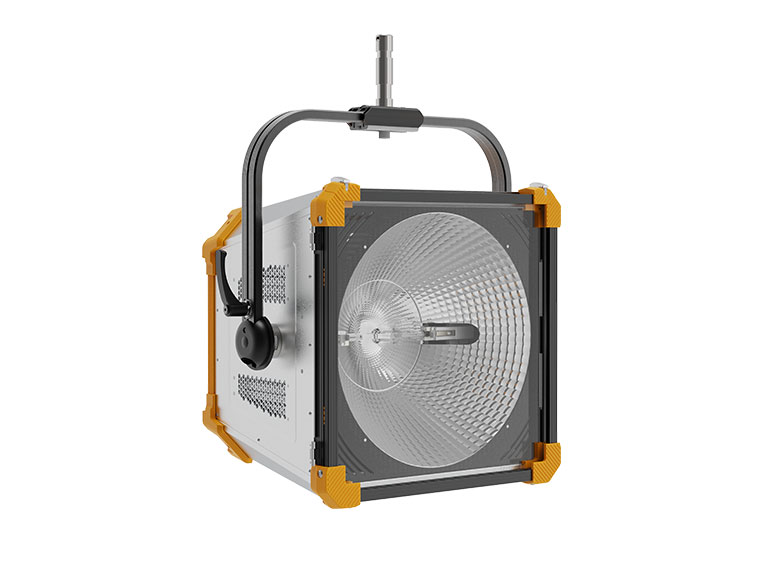

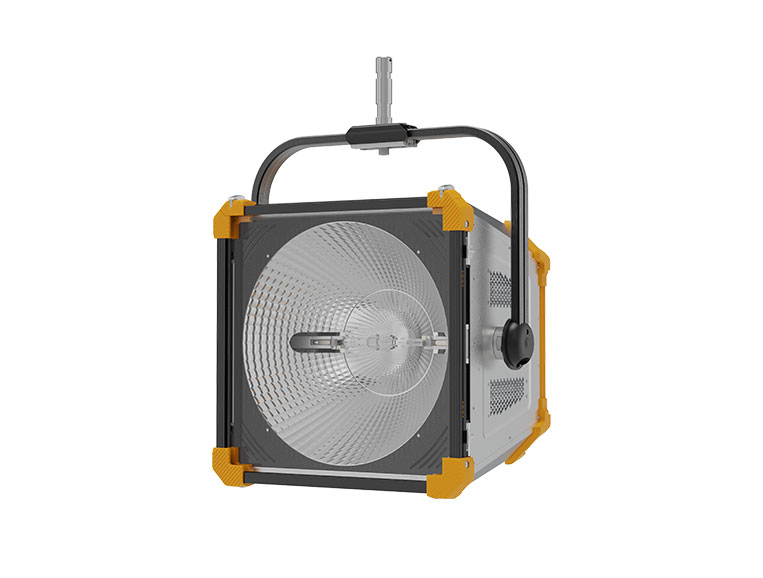

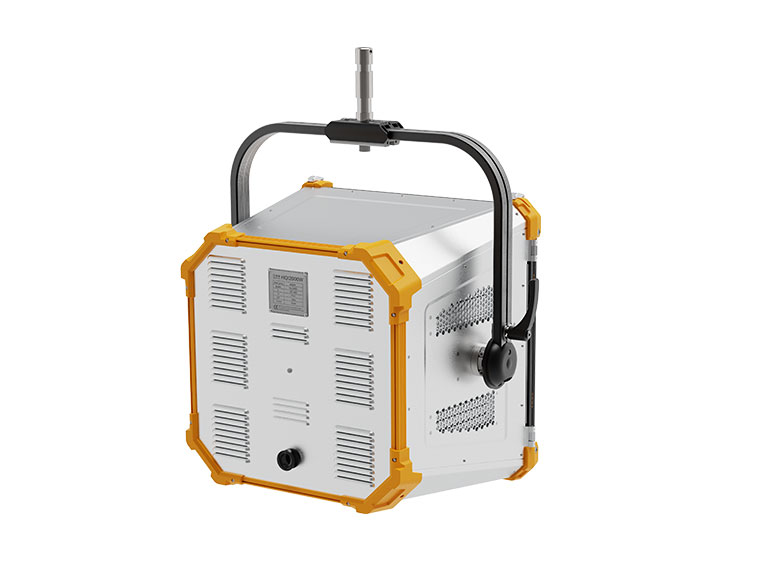

Table 1 Simulation Radiation Unit(SRU)
| Optical Characteristic | |
| Bulb Type | HMI 2500W/4000W |
| Luminous Flux | 240000 lm/380000lm |
| Color Temperature | 6000K |
| Color Rendering Index (Ra) | 90 |
| UV Protection Glass | UV cut on ca.320/290nm (Optional) |
| Electrical Characteristic | |
| Input | 2500W/4000W |
| Start-Up | Cold Start |
| Ignition Voltage | >20kV |
| Ignition Duration | <3s |
| Others | |
| Storage Temperature | -40°C〜90°C |
| Operating Temperature | -20T~60T |
| Ingress Protection | IP53 |

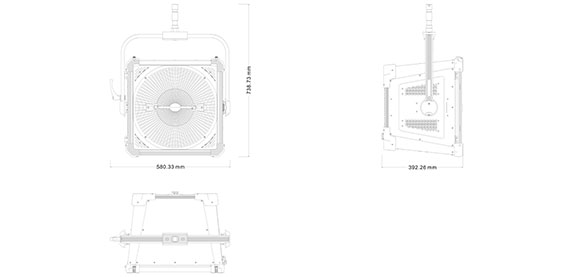

| Dimension(L*W*H) | 478mm x 473mm x 390mm(HMI2500) 603mm x 603mm x 407mm(HMI4000) |
| Weight | 18kg(HMI2500)/22kg (HMI4000) |
| Certification | CE、RoHs、REACH |

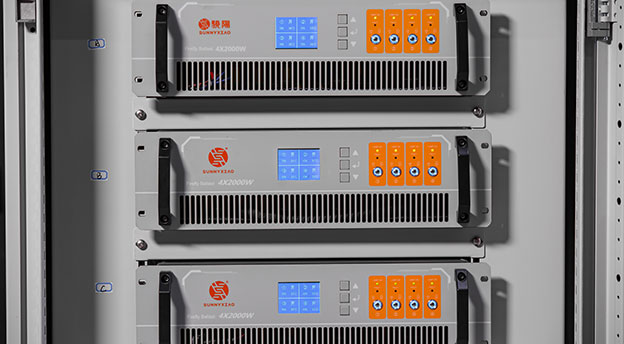

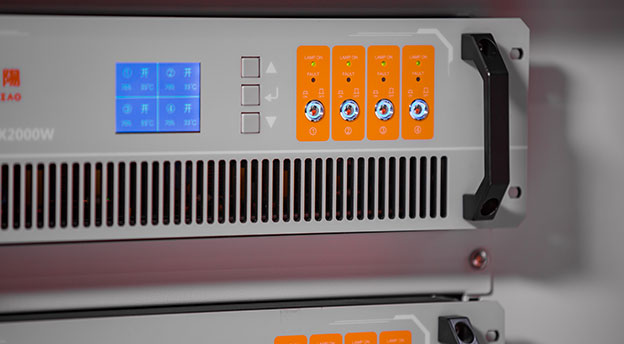

Table 2 Electronic Ballast(EPS)
| Input | |
| Line Interface | Terminal Block |
| Voltage | 180〜250VAC，50/60Hz |
| Wattage | 2700/4300W |
| Output | |
| Connector | 6-pin, Heavy-duty Connector |
| Wattage | 2500/4000W |
| Current | 21.7A |
| Voltage | 115V/184V |
| Dimming Range | 50% - 100% |
| Power Factor | >90% |
| Control Interface | |
| Electrical Interface | Current (4-20mA), Voltage (0-10V) |
| Protocol Interface | DMX512, Modbus, Profinet etc. |
| Others | |
| Operating Temperature | -10°C〜40°C, No-condensation |
| Ingress Protection | IP20 |

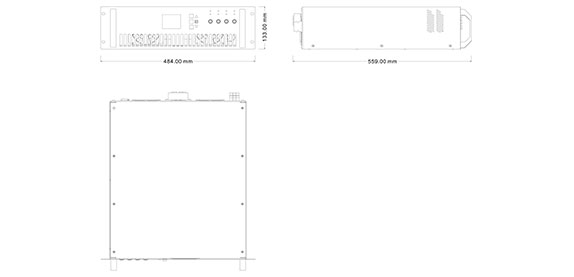

| Dimension(L*W*H) | 484 mmxl33mmx556mm(Including Handles) |
| Weight | 16kg |
| Certification | CE、RoHs、REACH |
Sunnyxiao is a one-stop solar simulation solution provider. Not only do we provide solar simulators and ballasts, but also we provide turn-key service.

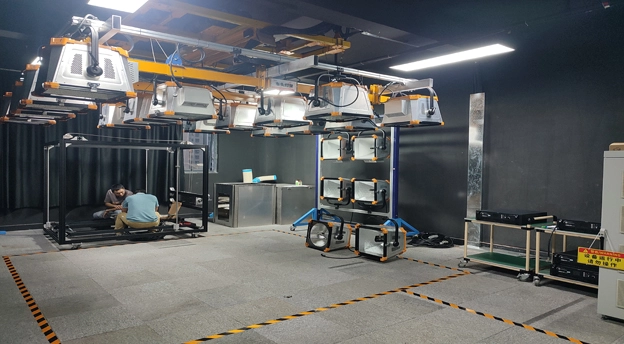

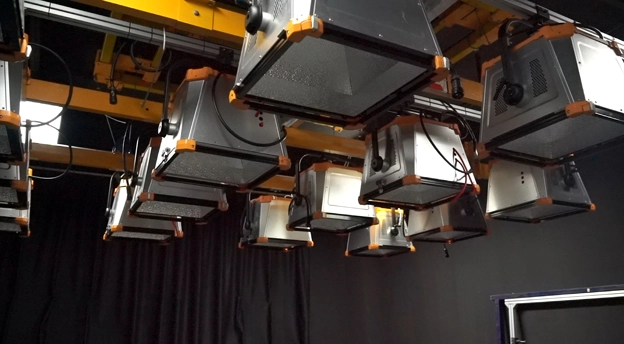

Applications of HQI 2000/HMI 2500/HMI 4000 Solar Simulation

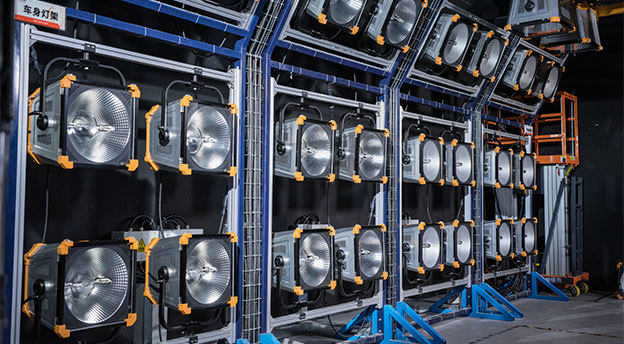

Automobile - weathering & collision testing
Railway vehicles - weathering & collision testing
Aerospace - weathering testing
Military - environmental testing
Film & television - lighting in various scenes
Agriculture - plant & animal cultivation
Clothing - UV protection testing, etc.
HQI 2000/HMI 2500/HMI 4000 Solar Simulation Features
Full spectral solar simulation: Fully comply with CIE85 solar spectral irradiance requirement

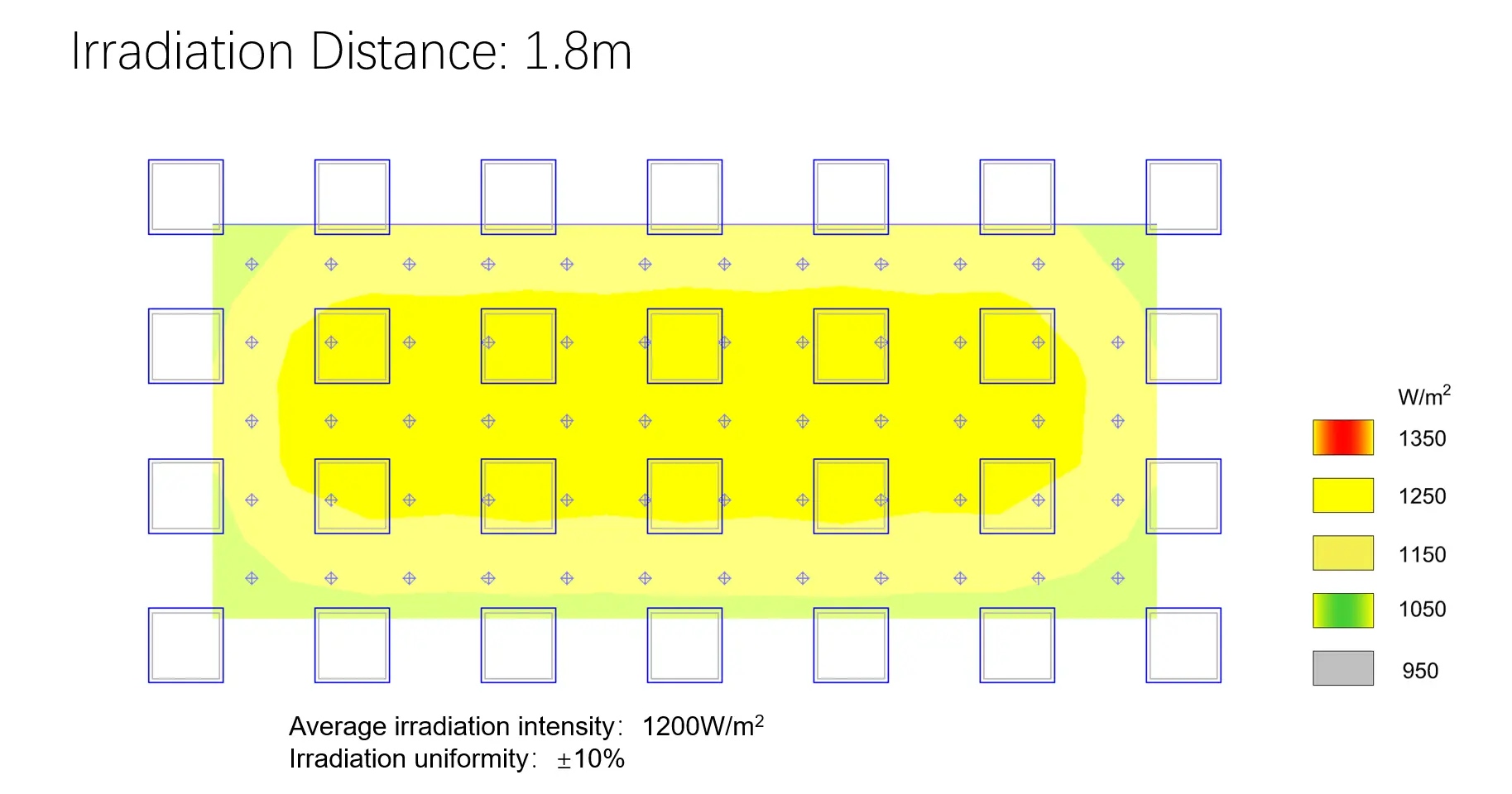

High irradiation intensity: the hydrargyrum medium arc iodide lamp provides 500w/m²~1120w/m² irradiation coverage

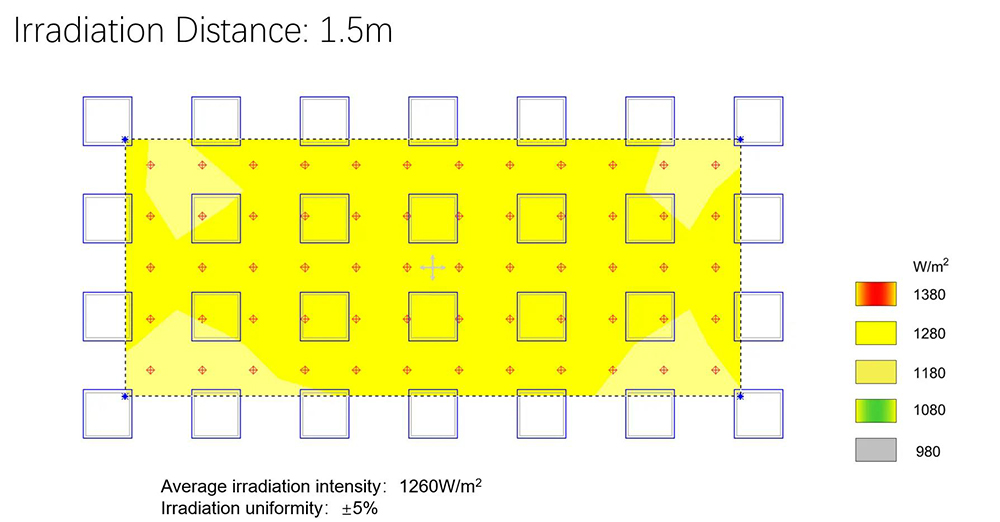

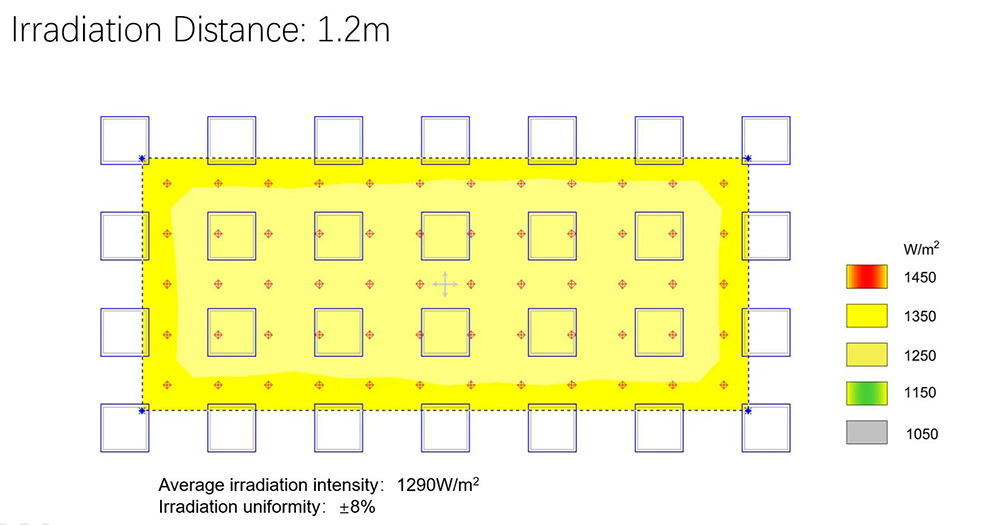

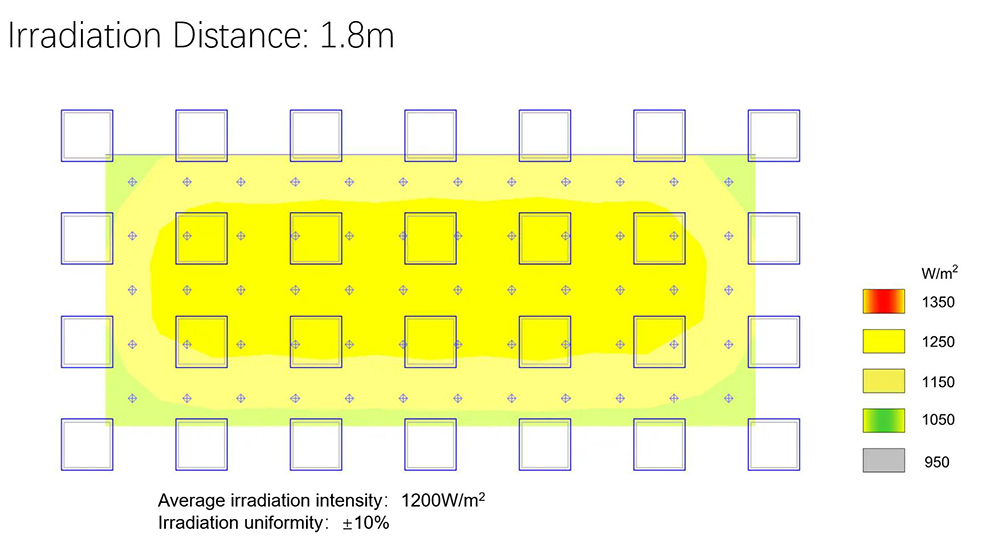

High uniformity: Irradiation uniformity < 10%
Optimized light distribution curve: Uniformity and comfort meet CCT and Kruithof curve requirements
Adjustable focal length: Adaptable to various test distance conditions
Patented timing-control ignitor: Fast startup, short setting time

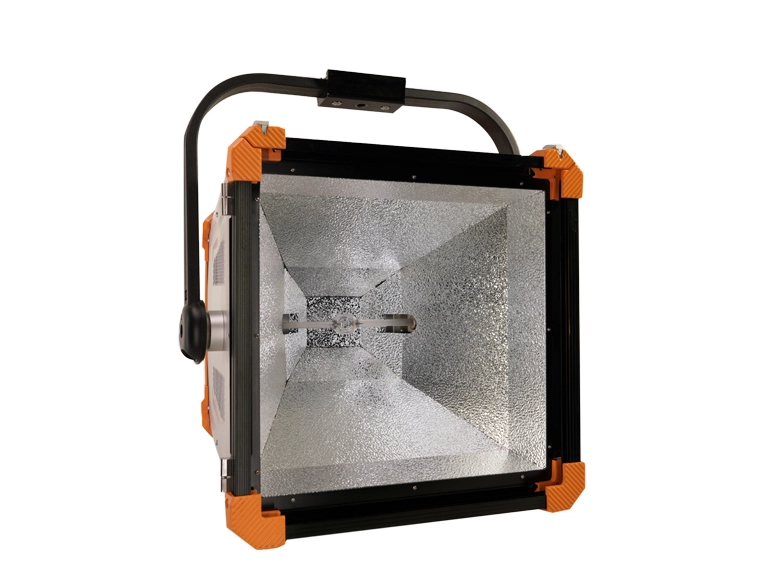

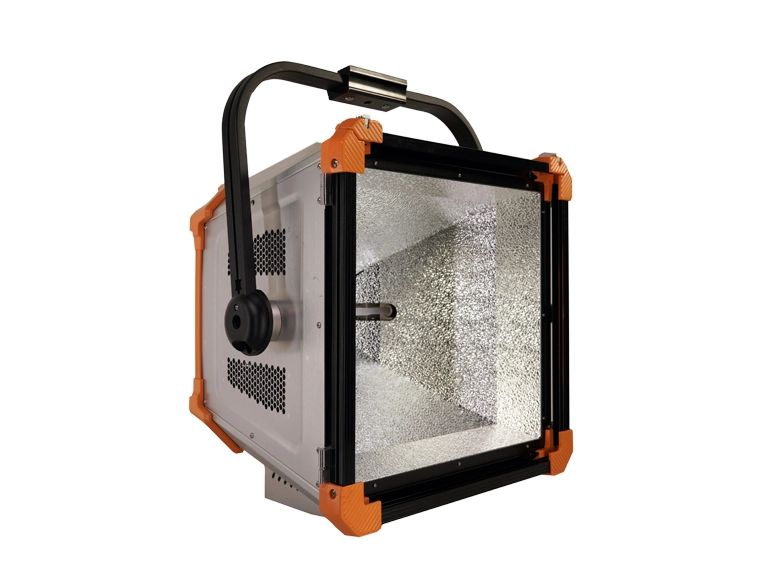

Patented polyhedral mirror reflector: Brilliant enhancement of uniformity and optical performance
Modular design plus ergonomics: Facilitates the O&M by users
Robust & endurable: High strength alloy housing, fit for harsh environment
